Amplificator pentru chitara Dean Markley K-75
Guitar amplifier Dean Markley K-75

Dean Markley. The name has meant the world's finest strings to those who know... the professionals. Professionals like AC/DC, Grateful Dead, Little Feat. Dire Straits, Hank Williams Jr., George Thorogood, Metallica, 38-Special, Sammy Hagar, Doobie Bros., Ted Nugent, and hundreds of others.


Guitar amplifier Dean Markley K-75
Specifications
Power Source: 120 Volts AC. 50/6OHZ
Sensitivity: Normal- 42m V.
Output Power: 50 Watts 4 Ohms.
Speaker Size: 12” 8 Ohms.
Magnet Weight: 34 Ounce.
Line Out: 1K Ohm Impedance, 10 to 1
Attenuation from Speaker.
Headphone Out: 8 Ohms or greater.
Dimensions: 17 3/4”H x 18 1/8”W x 9 1/2”D.
Weight: 32 Lbs.


My guitar

Front panel functions
Functiile panoului frontal
Dean Markley K-75 front panel
  1. Drive Switch: Switches between the 'Clean Channel' and the 'Overdrive' channel.
  2. Input: This is the input jack for your amplifier. Plug your instrument in here.
  3. Footswitch: This input is for a footswitch, to remotely turn “Drive” On and Off.
  4. Drive: This control varies the amount of “Overdrive" when the drive switch is on.
  5. Volume 2: Sets the overall volume of the “Drive channel", when the Drive switch is on.
  6. Volume 1: Sets the overall volume of the “Clean channel", when the Drive switch is off
  7. Treble: This shelving type tone control adjusts the gain above 2500 Hz.
  8. Midrange: This peaking type control adjusts the gain centered at approx. 800 Hz
  9. Bass: This shelving type tone control adjusts the gain below 120 Hz.
  10. Reverb: This control adjusts the amount of Concert-Hall style reverberation.
  11. Phones: This output jack can be used for silent practice through head phones. The speaker output is automatically disconnected when head phones are plugged in.
  12. Footswitch: This output is for a footswitch, to remotely turn Reverb ON or OFF.
  13. Line Out: This Hi Impedance output jack can be used to connect directly to a tape recorder, mixing console or separate power amplifier.
  14. Line In: This jack can be used for connection from the output of an effects device or the output of another pre-amp. This signal goes directly to the power amp.
  15. Power LED Indicator: Indicates AC power is on.
  16. Power Switch: This switch turns on main AC power to the amplifier.
  17. Important: To prevent electrical shock from microphones and other grounded er Ungrounded equipment. always plug into a 3-prong outlet.

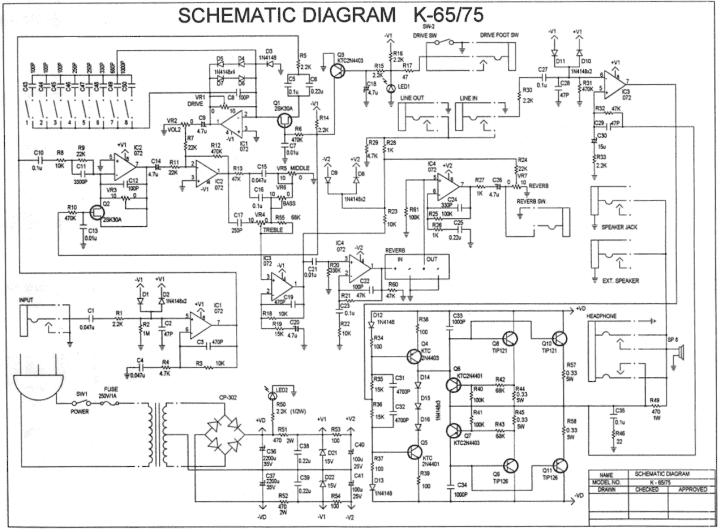

Schematic Diagram
Schema electrica
Schema electrica furnizata de producator:
(click pentru marire)

Dean Markley K-75 Schematic Diagram

Releveu etaj final
Power stage schematic diagram Dean Markley K-75 Releveu etaj final
Releveu alimentator si corector de ton
PSU and tone corrector Dean Markley K-75 Releveu alimentator si corector de ton
Reverb
Reverb Dean Markley K-75 Reverb

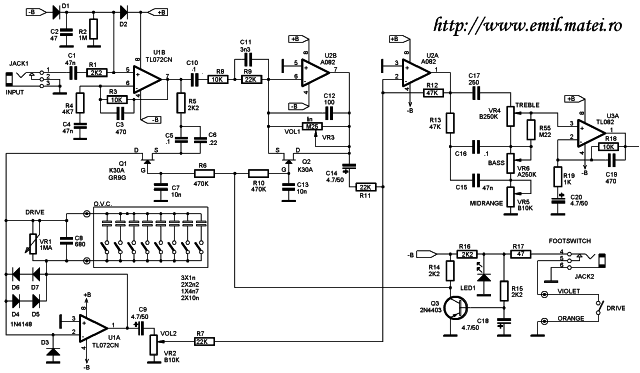

Releveu preamplificator chitara
Guitare preamplifier schematic diagram
(click pentru marire)

Dean Markley K-75 Schematic Diagram of guitare preamplifier

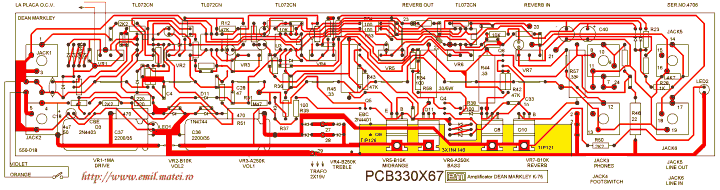

Dean Markley K-75 PCB
PCB - vedere dinspre componente, prin transparenta:
(click pentru marire)

PCB amplifier Dean Markley K-75
Foto

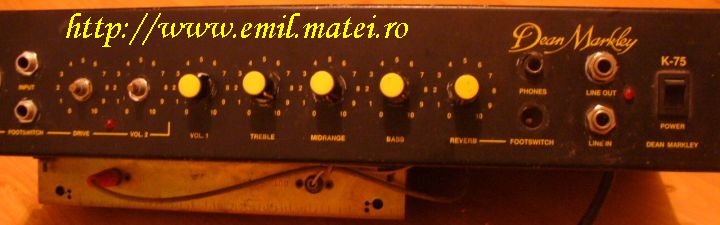

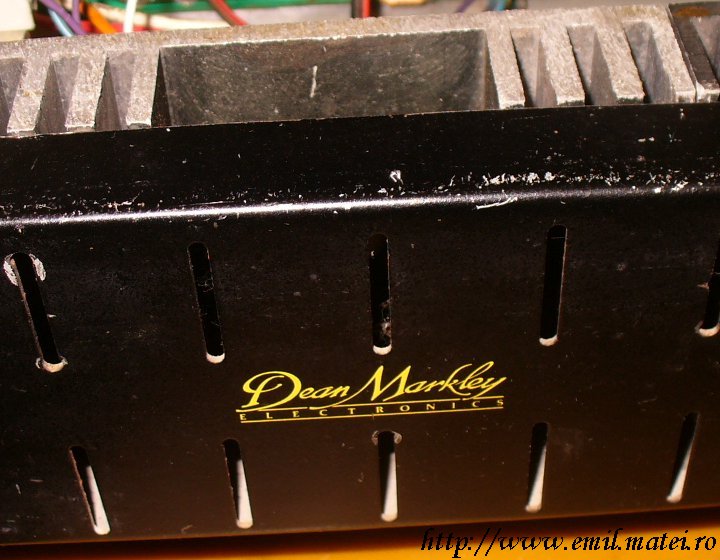

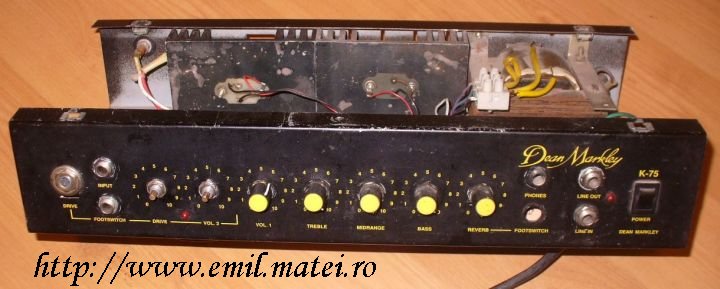

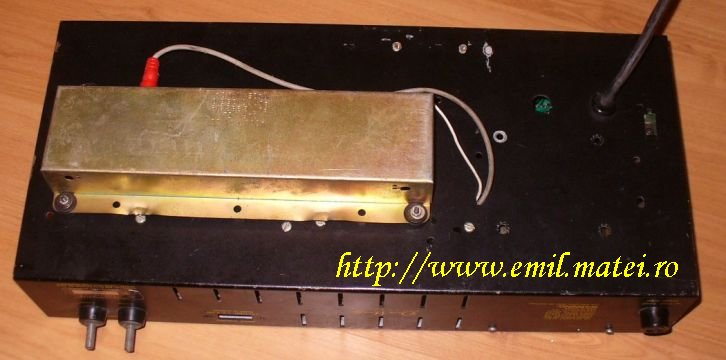

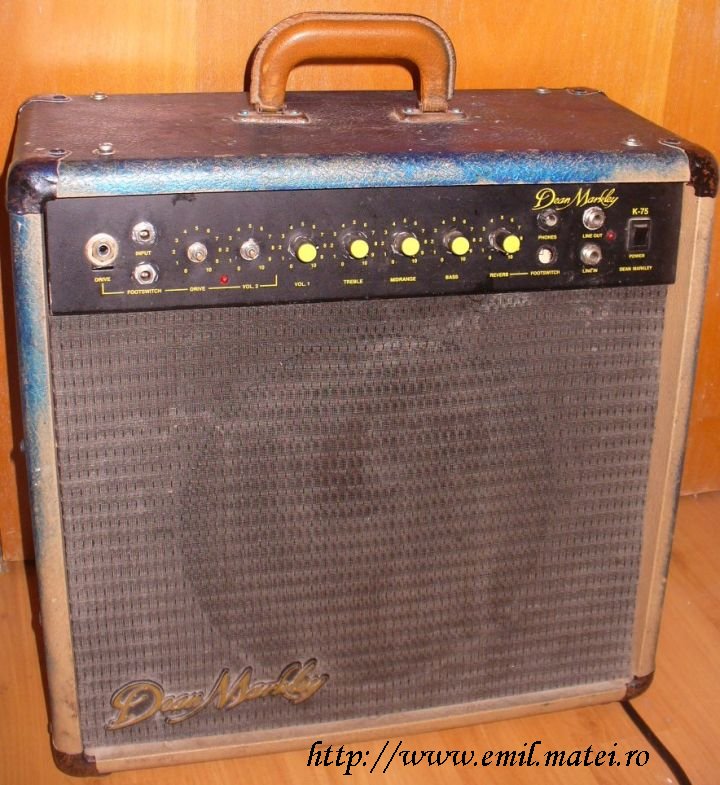

My amplifier Dean Markley K-75

My amplifier Dean Markley K-75

My amplifier Dean Markley K-75 Loudspeaker

My amplifier Dean Markley K-75

My amplifier Dean Markley K-75

My amplifier Dean Markley K-75

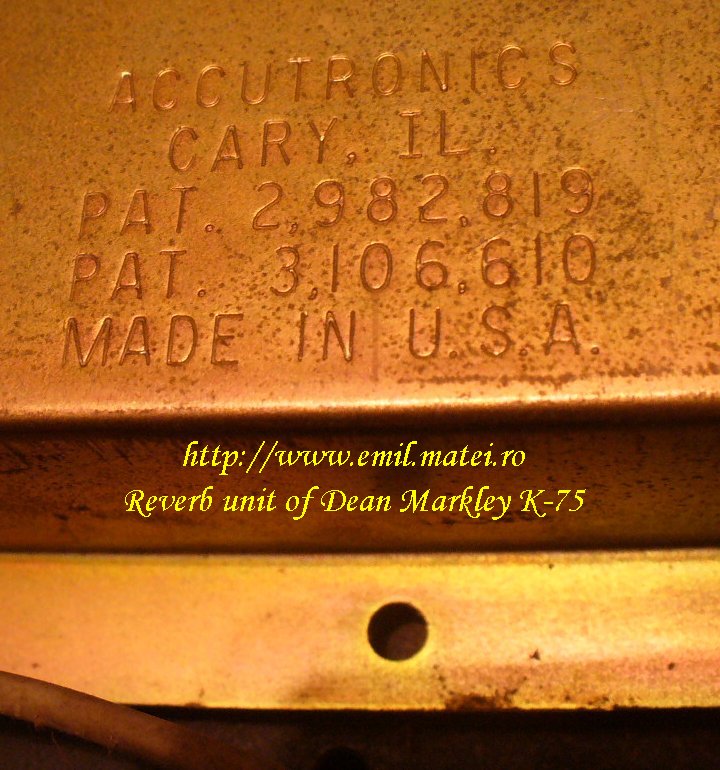

Reverb Unit of My amplifier Dean Markley K-75

My amplifier Dean Markley K-75

Detalii
Dean Markley K-75 PCB
