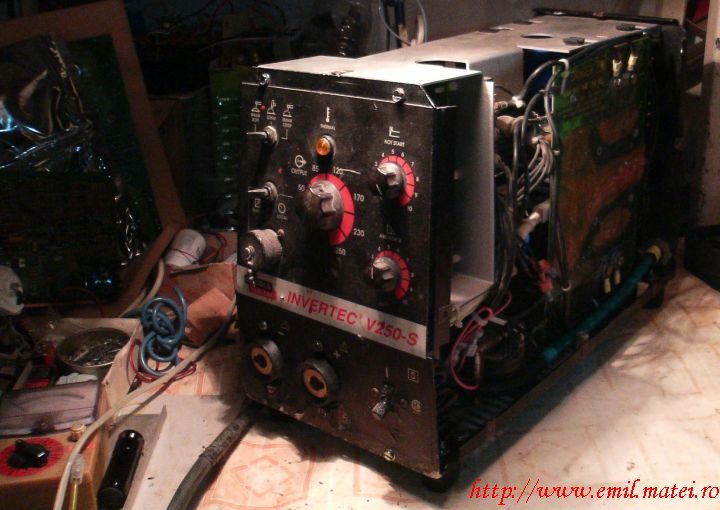

Invertorul de sudare "Lincoln Invertec V250-S"
"Lincoln Invertec V250-S" - welding inverter

Lincoln Invertec V250S

Wiring Diagram Code 10188.

Circuite de alimentare.Transformatorul auxiliar.

Lincoln Invertec V250S - Circuite de alimentare. Transformatorul auxiliar

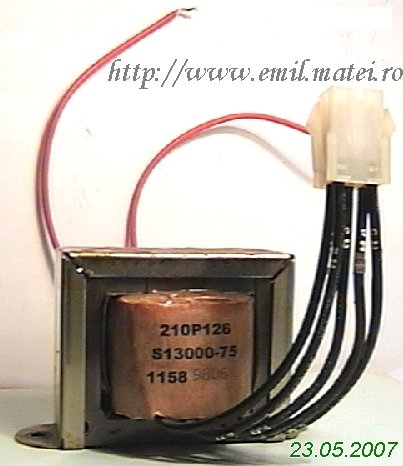

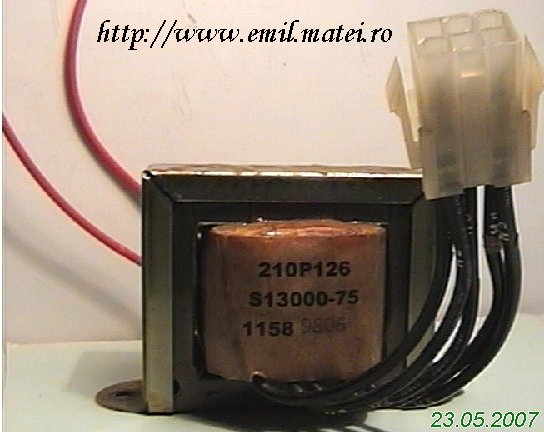

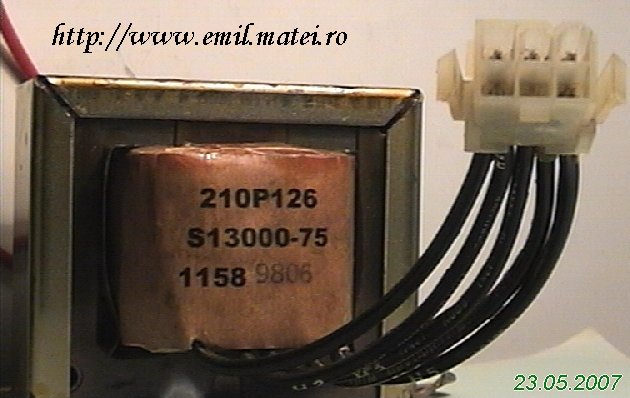

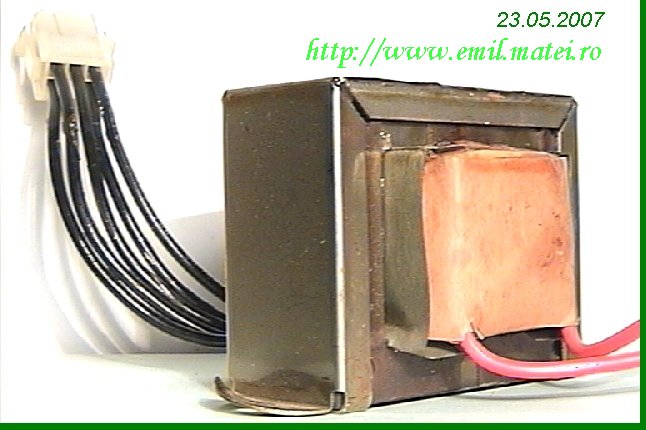

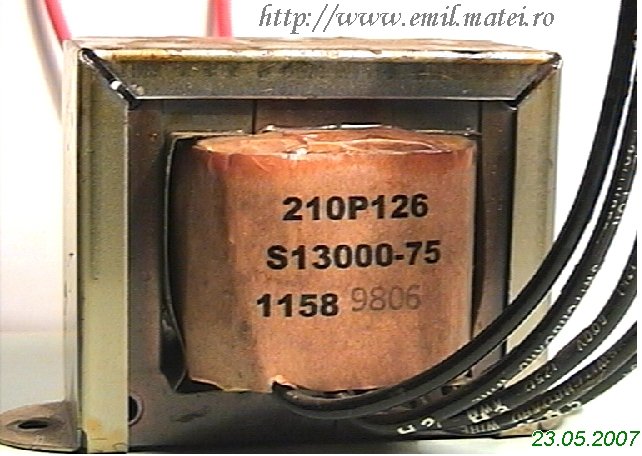

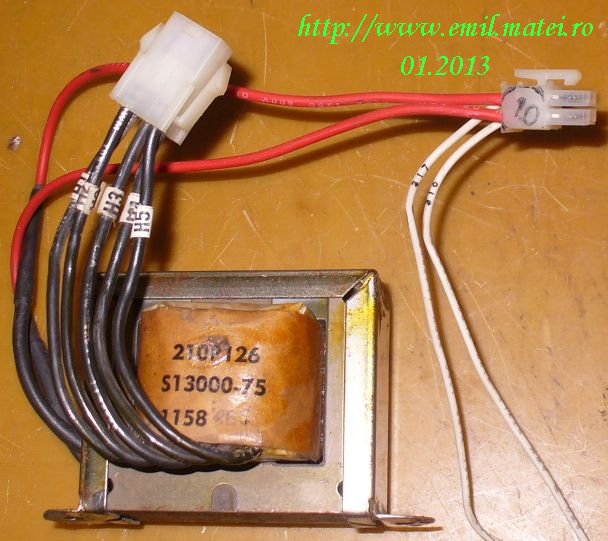

Lincoln Invertec V250S - Transformator auxiliar


Lincoln Invertec V250S - Transformator auxiliar

Lincoln Invertec V250S - Transformator auxiliar

Lincoln Invertec V250S - Transformator auxiliar

Lincoln Invertec V250S - Transformator auxiliar

Lincoln Invertec V250S - Transformator auxiliar

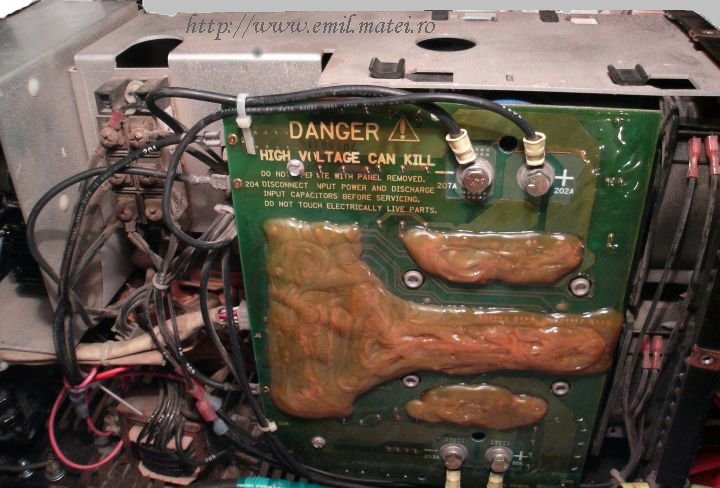

Circuite de putere.
Lincoln Invertec V250S



Power Board G2684 - Fata cu componentele.

Lincoln Invertec V250S Power board

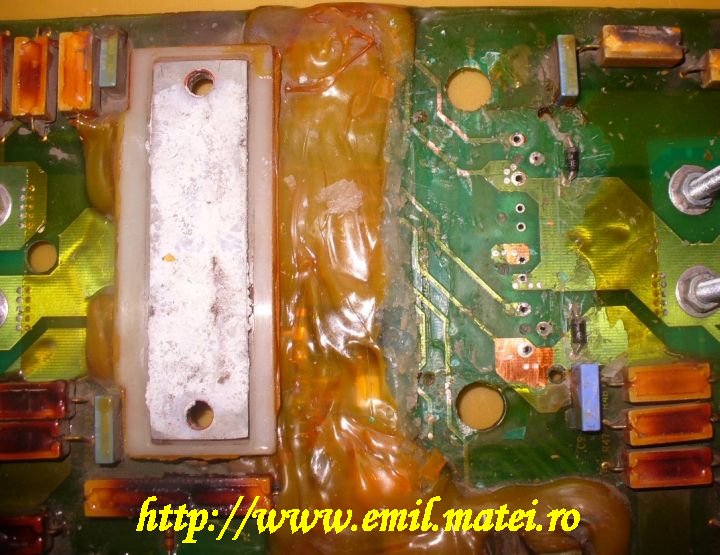

Power Board G2684 - Detaliu 1 - PCB.

Lincoln Invertec V250S Power board detail



Power Board G2684 - Detaliu 2 - PCB.

Lincoln Invertec V250S Power board detail



Power Board G2684 - Detaliu 1 - Schema electrica

Lincoln Invertec V250S Power board detail



Power Board G2684 - Detaliu 2 - Schema electrica

Lincoln Invertec V250S Power board detail



Power Board G2684 - Detaliu 3 - Schema electrica

Lincoln Invertec V250S Power board detail



Lincoln Invertec V250S Power board detail

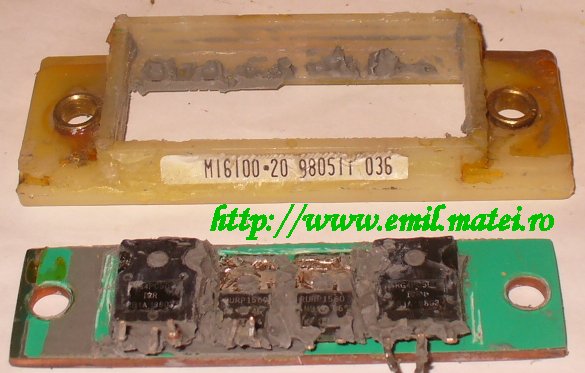

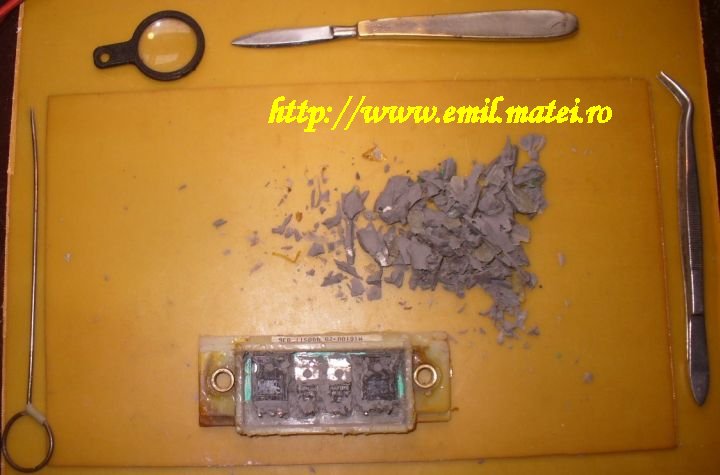

Autopsia modulului de putere cu IGBT:

Lincoln Invertec V250S Power Module detail



Lincoln Invertec V250S Power Module detail



Circuite de comanda. PCB Control.

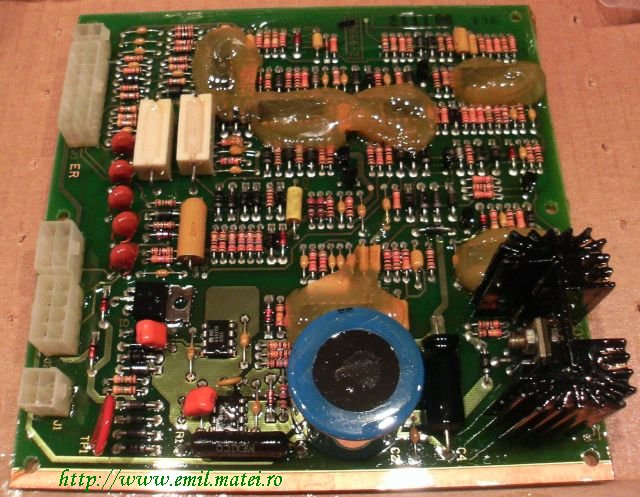

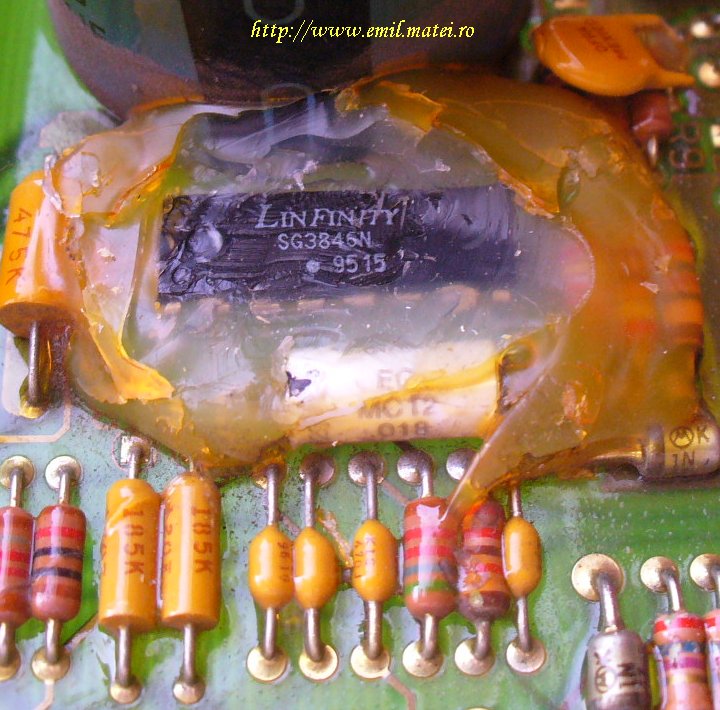

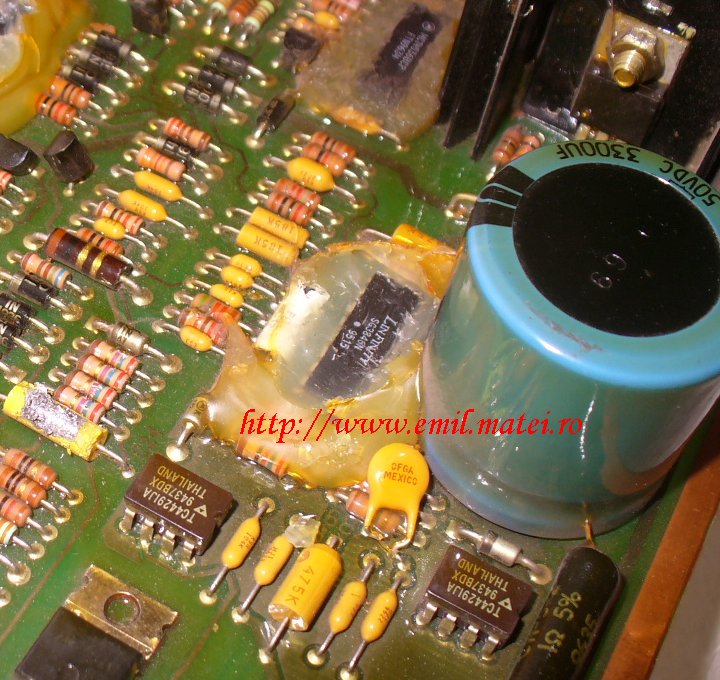

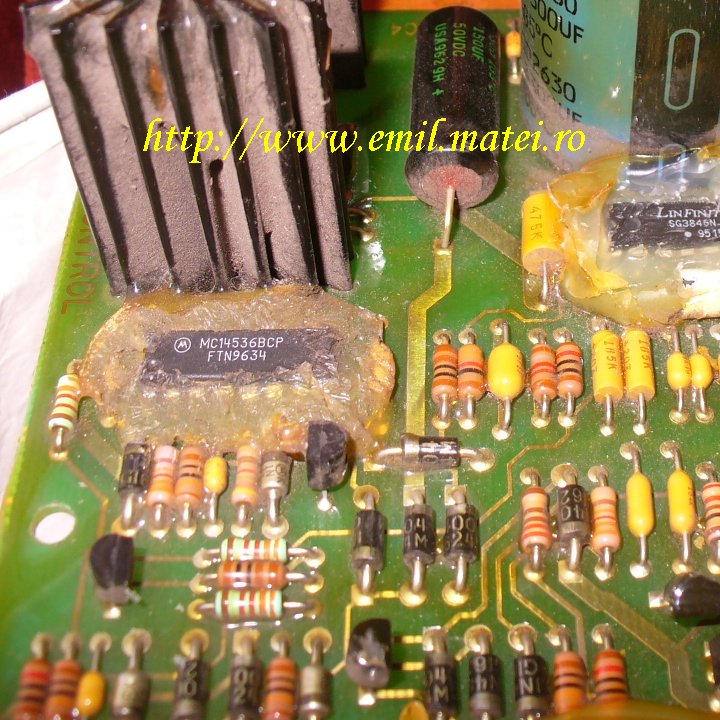

PCB Control G2666 - Lincoln Invertec V250S

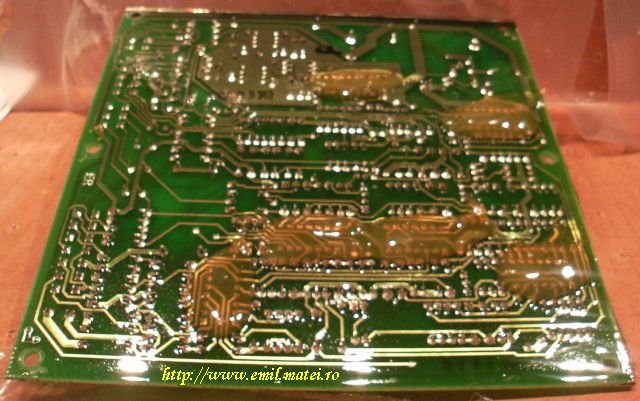

PCB Control G2666 - Lincoln Invertec V250S

PCB Control G2666 - Lincoln Invertec V250S - Layout
Lista componente PCB Control.

Reper Cantitate Tip, Caracteristici

C1,C5,C6,C12,C20,C23,C30,C35,C41,C42,C49,C51 13100nF/50V
C2 13300uF/50V
C3,C8,C13,C15,C22,C28,C29,C31,C32,C33,C36,C38,C39,C40,C501522nF/50V
C4 1150uF/50V
C7,C9,C27,C47 44.7uF/35V
C11118nF/50V
C14, C46 2 150pF/100V
C16, C45 2 47pF/100V
C17, C18 2 1.8uF/20V
C19, C43, C44 3 2700pF/50V
C21, C26 2 4700pF/50V
C24 1 15nF/100V
C25 1 100uF/20V
C48 1 1uF/35V

D1,D2,D3,D6,D9,D10,D11,D12,D13,D14,D19,D20, D21,D22,D23,D24,D26,D27,D28,D30,D31,D32,D34, D36,D37,D38,D39,D41,D42,D43,D44,D45,D46 35 1N4004

D7, D8, D29, D35 4 1N5818
D15, D16, D17, D18 4 1N4936
D33, D40 2 1N914

DZ11 1N4746A
DZ2, DZ4, DZ12 31N4742A
DZ31 1N4747
DZ51 1N4744A
DZ71 1N4735
DZ81 1N4761A
DZ91 1N4740
DZ10, DZ11 21N4733

Q11100V, 4A, MOSFET
Q2, Q3, Q5, Q6, Q752N4401
Q41300V, 500mA, pnp

TP1115J, Varistor

R5, R6, R45, R46, R605Termistoare PTC
R91Termistor PTC

R111.0 Ohm/5W
R2, R37, R52, R67, R96, R103, R1097332K/0.25W
R3, R8, R16, R36, R51, R56, R69, R85, R87, R98, R100, R10112100K/0.25W
R4, R10, R34, R39, R57, R9961.5K/0.25W
R11, R1422.67K/0.25W
R121243 Ohm/0.25W
R13, R54226.7K/0.25W
R17122.1K/0.25W
R18, R88, R91356.2K/0.25W
R19, R42, R43, R49, R55, R59, R73, R76, R79, R92, R1081110K/0.25W
R20118.2K/0.25W
R211332 Ohm/0.25W
R22, R482221 Ohm/0.25W
R23, R38, R65, R93, R94,R128, R129733.2K/0.25W
R24, R25, R26, R27426.7Ohm/0.25W
R28, R29210 Ohm/0.25W

R30,R31,R32,R110,R111,R112,R116,R117, R118,R119,R120,R121,R122,R123,R124,R125,R126,R12718562 Ohm/0.25W

R33, R68, R80, R8342.21K/0.25W
R35, R61, R64, R77, R84, R95, R105747.5K/0.25W
R4011 Ohm/0.5W
R41, R81, R13031K/0.25W
R44, R75215K/0.25W
R4716.81K/0.25W
R53, R9726.19K/0.25W
R58, R62, R66, R8244.75K
R70, R7823.32K/0.25W
R71, R7228.25/0.25W
R74182.5K/0.25W
R86, R1042100 Ohm/0.25W
R89, R9022.94K/0.25W
R102113.7K/0.25W
R106, R107, R113, R114, R115547.5 Ohm/0.25W

X11LM350
X2, X42TC4429IJA
X31SG3846N
X51MC14536B
X61MC14584
X71MC14066BCP
X81LM224
X91LT1014

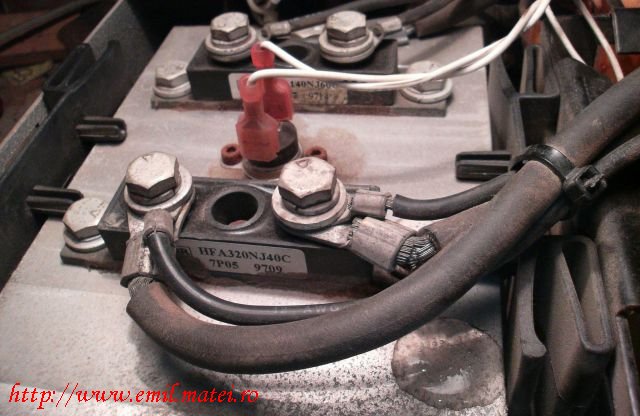

Circuite de iesire

Lincoln Invertec V250S

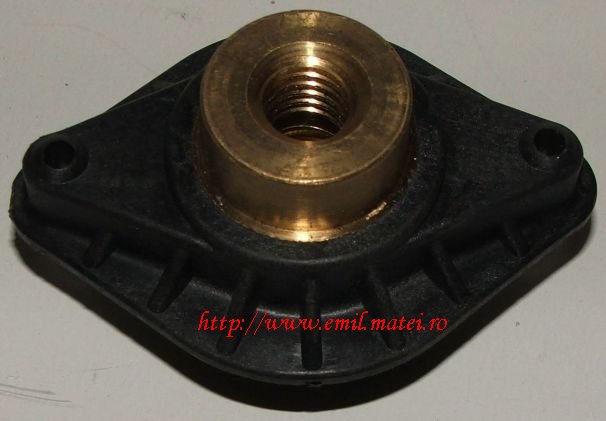

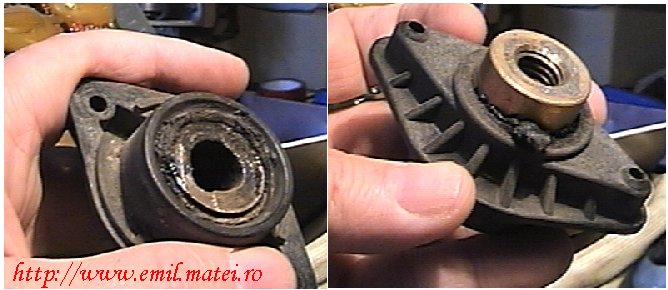

Borna Texas

Borna Texas
